Galaxy Fixation™ Simple components, infinite solutions

Simple components,
infinite solutions

CLAMPS FOR INDEPENDENT
SCREW PLACEMENT

DISCOVER >

MULTISCREW CLAMPS

DISCOVER >

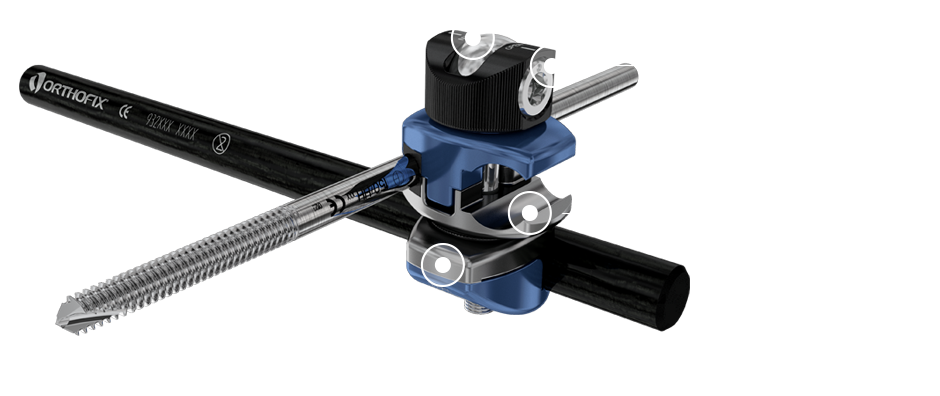

Clamp for Independent
Screw Placement

Galaxy Fixation
Large Clamp

Large Clamp (93010)

To be used with 12mm Rods and 6mm Shaft Bone Screws

Medium Clamp components 3
Medium Clamp components

Shaft Diameter Ø 6mm
Thread Diameter Ø 6/5.6, 6/5mm

Medium Clamp components 2

Shaft Diameter Ø 6mm
Thread Diameter Ø 4.5/3.5mm

Small clamp

Shaft Diameter Ø 6mm
Thread Diameter Ø 6, 5, 4mm

Transfix

Shaft Diameter Ø 6mm
Thread Diameter Ø 7mm

Medium Clamp

Medium Clamp (93110)

To be used with 9mm Rods and 6mm Shaft Bone Screws

Medium Clamp components 3
Medium Clamp components

Shaft Diameter Ø 6mm
Thread Diameter Ø 6/5.6, 6/5mm

Medium Clamp components 2

Shaft Diameter Ø 6mm
Thread Diameter Ø 4.5/3.5mm

Small clamp

Shaft Diameter Ø 6mm
Thread Diameter Ø 6, 5, 4mm

Small Clamp

Small Clamp (93310)

To be used with 6mm Rod and 4mm Shaft Bone Screws

Small Multiscrew Clamp-Long 93320
Small Clamp 93310

Shaft Diameter Ø 4mm
Thread Diameter Ø 3.3/3mm

Small clamp

Shaft Diameter Ø 4mm
Thread Diameter Ø 3mm

Large-Medium Transition Clamp

Large-Medium Transition Clamp (93030)

To be used with 12mm Rods (Blue Part), 9mm Rods (Yellow Part) and 4mm Shaft Bone Screws

Medium Clamp components 3
Medium Clamp components 3
Small Clamp 93310

Shaft Diameter Ø 4mm
Thread Diameter Ø 3.3/3mm

Small clamp

Shaft Diameter Ø 4mm
Thread Diameter Ø 3mm

Transfix

Shaft Diameter Ø 4mm
Thread Diameter Ø 5mm

Multiscrew Clamps

Multiscrew Clamp
Multiscrew clamps
Multiscrew Clamp

Multiscrew Clamp (93020)

To be used with 12mm Rods and 6mm Shaft Bone Screws

Medium Clamp components 3
Medium Clamp components

Shaft Diameter Ø 6mm
Thread Diameter Ø 6/5.6mm

Medium Clamp components 2

Shaft Diameter Ø 6mm
Thread Diameter Ø 4.5/3.5mm

Small clamp

Shaft Diameter Ø 6mm
Thread Diameter Ø 6, 5, 4mm

Medium Multiscrew Clamp

Medium Multiscrew Clamp (93120)

To be used with 9mm Rods and 6mm Shaft Bone Screws

Medium Clamp components 3
Multiscrew Clamp 93020

Shaft Diameter Ø 6mm
Thread Diameter Ø 6/5.6mm

Medium Clamp components 2

Shaft Diameter Ø 6mm
Thread Diameter Ø 4.5/3.5mm

Small clamp

Shaft Diameter Ø 6mm
Thread Diameter Ø 6, 5, 4mm

Small Multiscrew Clamp-Long

Small Multiscrew Clamp-Long (93320)

To be used with 6mm Rod and 3 or 4mm Shaft Bone Screws

Small Multiscrew Clamp-Long 93320
Multiscrew clamp long

Shaft Diameter Ø 4mm
Thread Diameter Ø 3.3/3mm

Multiscrew 5

Shaft Diameter Ø 3mm
Thread Diameter Ø 3.0/3.0-2.5mm

Multiscrew 4

Shaft Diameter Ø 4mm
Thread Diameter Ø 3.0mm

Small Multiscrew Clamp-Short

Small Multiscrew Clamp-Short (93330)

To be used with 6mm Rod and 3 or 4mm Shaft Bone Screws

Small Multiscrew Clamp-Long 93320
Multiscrew clamp long

Shaft Diameter Ø 4mm
Thread Diameter Ø 3.3/3mm

Multiscrew 5

Shaft Diameter Ø 3mm
Thread Diameter Ø 3.0-2.5mm

Multiscrew 4

Shaft Diameter Ø 4mm
Thread Diameter Ø 3.0mm

Large Double Multiscrew Clamp

Large Double Multiscrew Clamp (93040)

To be used with 12mm Rod and 4, 5 or 6mm Shaft Bone Screws

Medium Clamp components 3
Multiscrew Clamp 93020

Shaft Diameter Ø 6mm
Thread Diameter Ø 6/5.6mm

Medium Clamp components 2

Shaft Diameter Ø 6mm
Thread Diameter Ø 4.5/3.5mm

Small clamp

Shaft Diameter Ø 6mm
Thread Diameter Ø 6, 5, 4mm

Medium clamp

Medium Double Multiscrew Clamp (93140)

To be used with 9mm Rod and 4, 5 or 6mm Shaft Bone Screws

Medium Clamp components 3
Multiscrew Clamp 93020

Shaft Diameter Ø 6mm
Thread Diameter Ø 6/5.6mm

Medium Clamp components 2

Shaft Diameter Ø 6mm
Thread Diameter Ø 4.5/3.5mm

Small clamp

Shaft Diameter Ø 6mm
Thread Diameter Ø 6, 5, 4mm
